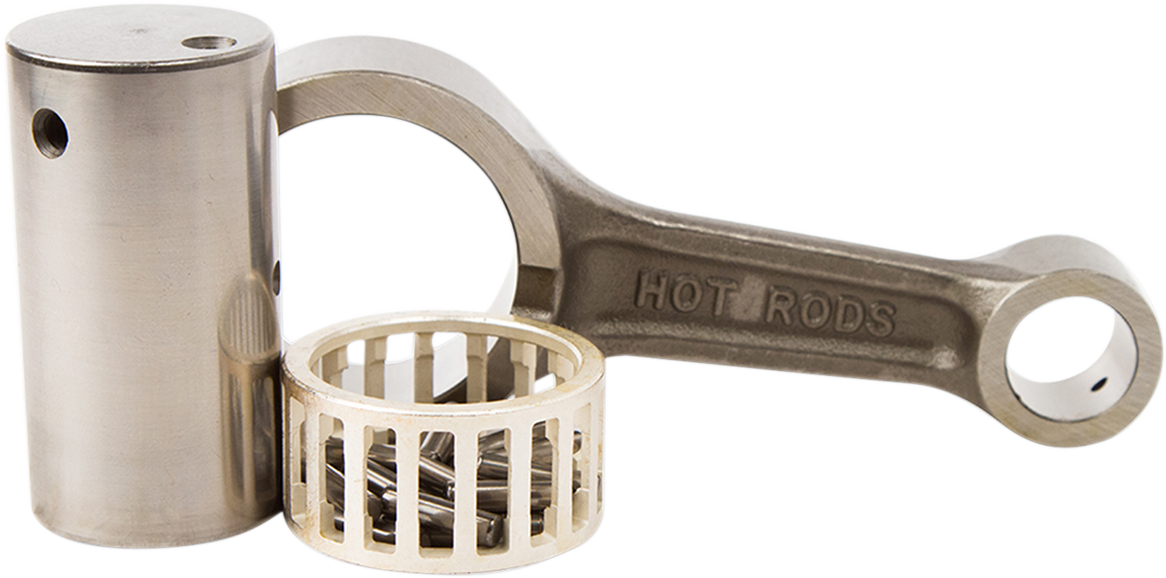

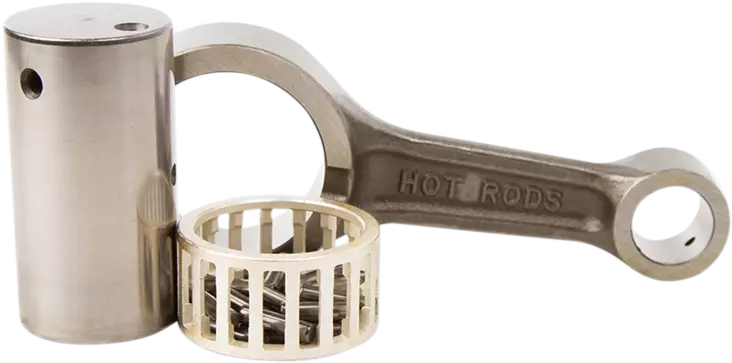

CONNECTING ROD 8698

Heavy-duty OE replacement connecting rods
Certified 8620 AISI steel provides superior strength
Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
Feature the latest in caged needle roller bearing designs for high rpm longevity
Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
Double honing produces an ultra-round bearing surface for reliability at high rpm
Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
Compatible with Hot Rods and OE crankshafts
Made in U.S.A.; connecting rod manufactured at Hot Rods Iowa facility

HONDATRX 350 TM2006Fourtrax RancherALL
HONDATRX 350 TE2006Fourtrax Rancher ESALL
HONDATRX 350 FE 4X42006Fourtrax Rancher ESALL
HONDATRX 350 FE 4X42005Fourtrax Rancher ESALL
HONDATRX 350 TM2005Fourtrax RancherALL
HONDATRX 350 TE2005Fourtrax Rancher ESALL
HONDATRX 350 FE 4X42004Fourtrax Rancher ESALL
HONDATRX 350 TM2004Fourtrax RancherALL
HONDATRX 350 TE2004Fourtrax Rancher ESALL
HONDATRX 350 TE2003Fourtrax Rancher ESALL
HONDATRX 350 FE 4X42003Fourtrax Rancher ESALL
HONDATRX 350 TM2003Fourtrax RancherALL
HONDATRX 350 TE2002Fourtrax Rancher ESALL
HONDATRX 350 FE 4X42002Fourtrax Rancher ESALL
HONDATRX 350 TM2002Fourtrax RancherALL
HONDATRX 350 TE2001Fourtrax Rancher ESALL
HONDATRX 350 FE 4X42001Fourtrax Rancher ESALL
HONDATRX 350 TM2001Fourtrax RancherALL
HONDATRX 350 FE 4X42000Fourtrax Rancher ESALL
HONDATRX 350 TM2000Fourtrax RancherALL
HONDATRX 350 TE2000Fourtrax Rancher ESALL
