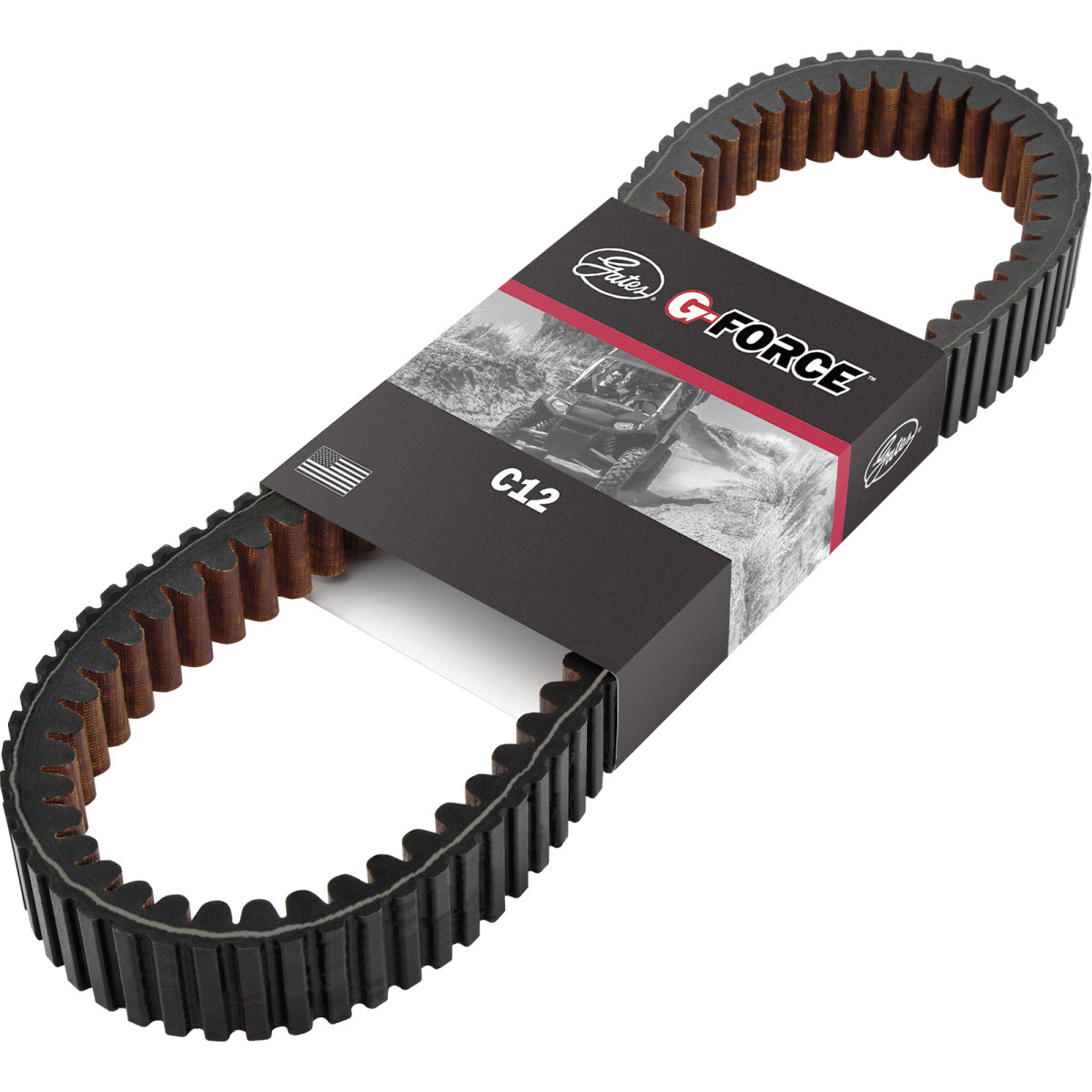

G-Force C12 Drive Belt

Polaris Ranger 570 2015-2020

G-Force™ C12™ Drive Belt


Utilizes carbon tensile cord for minimal stretch and extraordinary strength
High-performance neoprene with a trapezoidal topnotch and rounded bottom cog design maximizing heat control and flexibility
Carbon tensile cords are bonded to aramid fiber-loaded rubber with specially formulated adhesion gum, resulting in increased side-load resistance, preventing belt distortion and edge cord pullout
Gain optimal power transmission for faster acceleration, improved throttle response and consistent shifting performance
OE Comparison RatingOE Improved
Top Width (in)1.25
Top Width (mm)32
Outside Circumference (in)41.94
Outside Circumference (mm)1065
Pitch Length (in)40.76
Pitch Length (mm)1035
Pitch Width (in)1.17
Pitch Width (mm)29.70
Cord Position (in)0.17
Cord Position (mm)4.20
Thickness (in)0.54
Thickness (mm)13.60
Angle26
Double NotchYes
MaterialFabric Bottom
