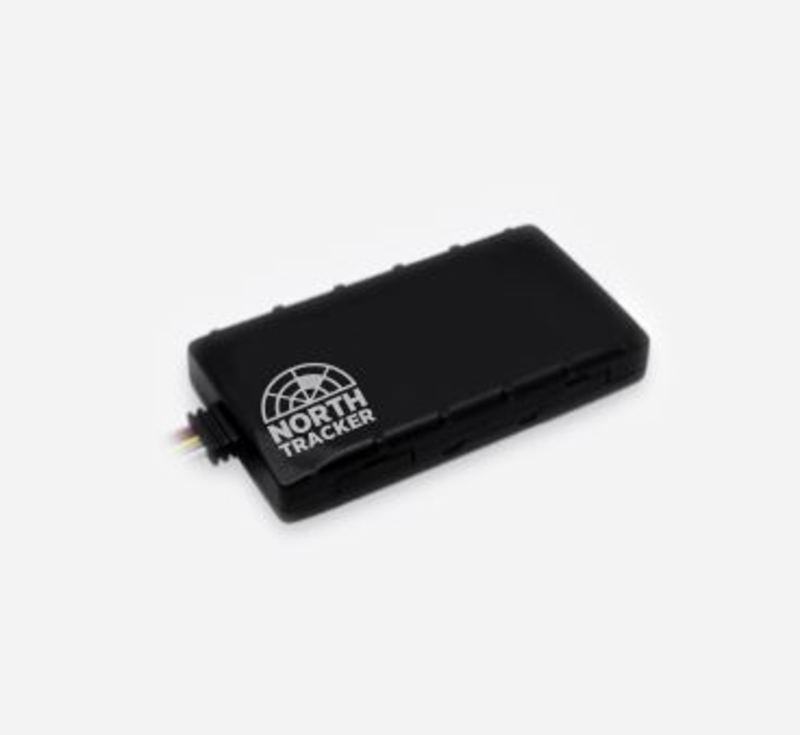

Northtracker Machine mini paikannin

Korkeus12mm
Pituus79mm
Leveys43mm
Machine Mini
NorthTracker Machine Mini tarjoaa varkaudenestoa, joka toimii kaikkialla Euroopassa.
GPS lähettää reaaliaikaisen paikannuksen, joten tiedät tarkalleen missä se on, koko ajan.
Machine Miniä voidaan käyttää myös turvallisuustarkoituksiin. Jos sinulle tapahtuu jotain, kuka tahansa, jolla on pääsy kirjautumiseen,
voi aina nähdä missä olet ja siten tulla apuun.
Helppo asentaa
Kytke Machine Mini +/- (8-32 V)
Rekisteröi tili
Syötä korkeintaan 5 turvavyöhykettä
Syötä mihin hälytykset toimitetaan
Valmis!

This is how Machine Mini works
Machine Mini is a small and agile GPS that connects to +/-, transmits position in real time and logs history.
Once you have created an account, you can enter up to five security zones for your NorthTracker Machine Mini. If the GPS moves outside one of your selected security zones, you will receive an alarm immediately via SMS or e-mail. Machine Mini provides anti-theft protection that works throughout Europe. It continues to send position so that your property can be easily traced, which leads to an increased chance of getting it back. The Machine Mini also logs history so you can see how it has moved or to summarize how long it has been stationary at different locations, for example customer billing.
Machine Mini can also be used for safety purposes. Should something happen to you, anyone who has access to the login can always see where you are and thus quickly come to the rescue. The machine is made for tough environments and is shock resistant and water resistant but not waterproof. It is approved by the SSF Theft Protection Association and can be connected to Nokia's Alarm Center for emergency calls.

TechnologyGSM / GPRS / GNSS / BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
receiver33 channel
Tracking sensitivity-165 dBM
Accuracy<3 m
Hot start<1 s
Hot start<25 s
Cold start<35 s
CELLULAR
TechnologyGSM
2G bandsQuad band 850/900/1800/1900 MHz
Data transferGPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data supportSMS (text / data)
POWER
Input voltage range6 - 30 V DC with overvoltage protection
Backup battery170 mAh Li-Ion battery (0.63 Wh)
Power consumptionAt 12V <2 mA (Ultra Deep Sleep)
At 12V <4 mA (Deep Sleep)
At 12V <5 mA (Online Sleep)
At 12V <6 mA (GPS Sleep)
At 12V <25 mA (nominal)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner
INTERFACE
Digital Inputs1
Digital Outputs1
Analog Inputs1
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro USB
LED indication2 status LED lights
SimMicro-SIM
Memory128MB internal flash memory
PHYSICAL SPECIFICATIONPHYSICAL ENVIRONMENT
Dimensions79 x 43 x 12 mm (L x W x H)
Weight54 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 ° C to +85 ° C
Storage temperature (without battery)-40 ° C to +85 ° C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP54
Battery charge temperature0 ° C to +45 ° C
Battery discharge temperature-20 ° C to + 60 ° C
Battery storage temperature-20 ° C to +45 ° C for 1 month
-20 ° C to +35 ° C for 6 months
FEATURES
SensorsAccelerometer
scenariosGreen Driving, Over Speeding Detection, Jamming Detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling Detection, Unplug Detection, Towing Detection, Crash Detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGPS, NITZ, NTP
Fuel monitoringLLS (Analog), ODBII dongle
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
CERTIFICATION & APPROVALS
RegulatoryCE / RED, E-Mark, EAC, RoHS, MTBF, REACH
